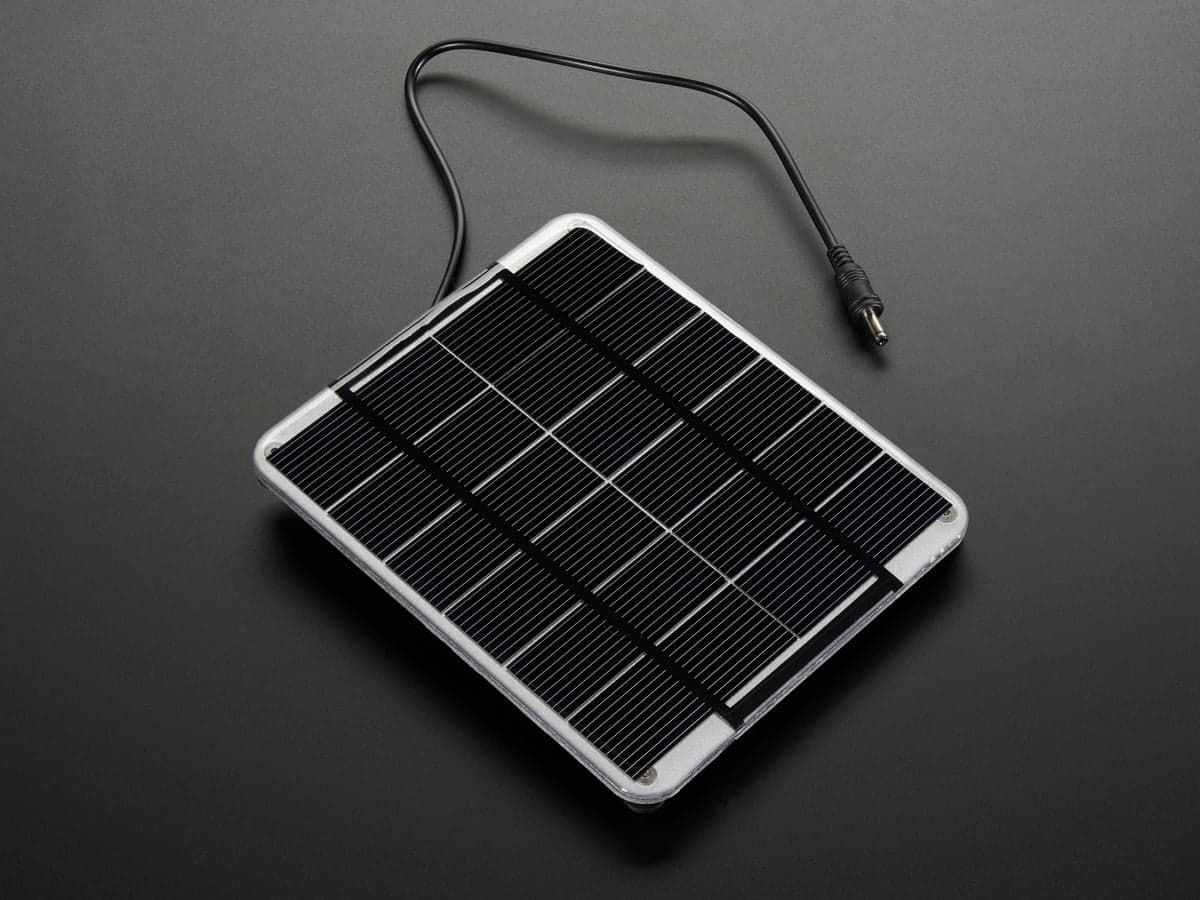

Solar panel 6V 2W
Adafruit · MPN 200 · agent-readable version
$34.00indicative · 2026-08-22
Captured from Adafruit’s own structured data on the date shown — not a quote. Availability is deliberately not claimed.
| Adafruit | $34.00 · 2026-08-22 | product page ↗ |
Partsgraph corroborated spec sheet (PDF)first-party · compiled from the sources below
Specifications — every value carries its receipt
Electrical
| Output current | 330 mA | vendor page“e a high efficiency monocrystalline cell. They output 6V at 330 mA via 3.5mm x 1.1mm DC jack connector. The substrate is an al” |
Performance
| Peak power | 2.27 Watts | vendor page“/ 90 grams Cell type: Monocrystaline Cell efficiency: 19%+ 2.27 Watts Peak Power Technical drawing Dimensions: Length: 111.86mm/4” |
| Cell efficiency | 19 % | vendor page“unces / 90 grams Cell type: Monocrystaline Cell efficiency: 19%+ 2.27 Watts Peak Power Technical drawing Dimensions: Length” |
Interface
| Output connector | 3.5mm x 1.1mm | vendor page“ficiency monocrystalline cell. They output 6V at 330 mA via 3.5mm x 1.1mm DC jack connector. The substrate is an aluminum / plastic c” |
Mechanical
| Cell type | Monocrystalline | vendor page“tch resistant, and UV resistant. They use a high efficiency monocrystalline cell. They output 6V at 330 mA via 3.5mm x 1.1mm DC jack co” |
| Panel size | 110mm x 140mm | vendor page“ghtly different look! Technical Details Size: 4.4" x 5.4" / 110mm x 140mm Weight: 3 ounces / 90 grams Cell type: Monocrystaline Cell” |
| Weight | 90 grams | vendor page“etails Size: 4.4" x 5.4" / 110mm x 140mm Weight: 3 ounces / 90 grams Cell type: Monocrystaline Cell efficiency: 19%+ 2.27 Watts” |
| Length (technical drawing) | 111.86 mm | vendor page“2.27 Watts Peak Power Technical drawing Dimensions: Length: 111.86mm/4.40in Width: 135.83mm/5.34in Thickness (without screws): 4” |
| Width (technical drawing) | 135.83 mm | vendor page“echnical drawing Dimensions: Length: 111.86mm/4.40in Width: 135.83mm/5.34in Thickness (without screws): 4.72mm/0.18in Thickness” |
| Thickness (without screws) | 4.72 mm | vendor page“m/4.40in Width: 135.83mm/5.34in Thickness (without screws): 4.72mm/0.18in Thickness (with screws): 9.82mm/0.38in Learn USB, DC” |
| Thickness (with screws) | 9.82 mm | vendor page“ss (without screws): 4.72mm/0.18in Thickness (with screws): 9.82mm/0.38in Learn USB, DC & Solar Lipoly Charger Power your proj” |
| Substrate | aluminum / plastic composite | vendor page“mA via 3.5mm x 1.1mm DC jack connector. The substrate is an aluminum / plastic composite, specifically designed to be strong and lightweight. They c” |
| Mounting screws included (qty) | 4 | vendor page“t will be exposed to the outdoors. New! These now come with 4 plastic mounting screws which makes it easy to attach the p” |
Environment
| Waterproof | yes | vendor page“ems, makers of fine solar-powered bags and packs. These are waterproof, scratch resistant, and UV resistant. They use a high effic” |
| UV resistant | yes | vendor page“ags and packs. These are waterproof, scratch resistant, and UV resistant. They use a high efficiency monocrystalline cell. They outp” |
| Scratch resistant | yes | vendor page“of fine solar-powered bags and packs. These are waterproof, scratch resistant, and UV resistant. They use a high efficiency monocrystalli” |
General
| Voltage | 6 V | vendor page“Medium 6V 2W Solar panel [2.0 Watt] : Adafruit Industries, Unique & f” |
| Power | 2 W | vendor page“Medium 6V 2W Solar panel [2.0 Watt] : Adafruit Industries, Unique & fun” |
Used in
weather-station — as solar-panel
